Looking for the most reliable and efficient way to clean industrial parts?
The Kaijo Sono Cleaner Plus Is the Answer
- ✓Offering a line of large ultrasonic cleaners designed to transform your industrial cleaning process
- ✓ Perfectly suited to cleaning applications in industries like automotive, aerospace, remanufacturing and electronics
- ✓ Can be used for tighter precision cleaning applications as well
Whether you’re looking to improve results, reduce costs, or eliminate manual cleaning challenges, Kaijo’s advanced large cleaning systems deliver consistent performance tailored to your needs.
Why Choose Kaijo’s Large Ultrasonic Cleaners?
Kaijo’s Sono Cleaner Plus series combines cutting-edge features, customizable designs, and robust construction to tackle the most challenging cleaning tasks. Here’s how they help you:
- ✓ Versatility: Clean components of any size or complexity efficiently
- ✓ Safety: Protect Your Team and Equipment – Integrated safety features like dry-run protection and temperature-controlled heaters prevent accidents and damage
- ✓ Efficiency: Save Time and Effort – Plug-N-play systems are industry-certified and operational right out of the box for a quick start.
- ✓ Tailor-Made: Optional filtration units, oil separators, and tank covers meet your unique requirements
- ✓ Durability: Built with industrial-strength stainless steel to withstand even the harshest environments
- ✓ Convenience: Kaijo’s systems are easy to use and include an above-the-tank basket holder for easy handling and improved workflow efficiency
Which Solution Fits Your Needs Best?
Compare Kaijo’s MW, MWM, and MWL Ultrasonic Cleaner Series to find the right choice for your cleaning challenges:
| Series | Key Features | Ideal For | Benefit |
|---|---|---|---|
| MW Series | Mechanical controls, dry-run protection | Engineers and technicians who prioritize simplicity | Boost process efficiency with straightforward, low-maintenance operation. |
| MWM Series | Digital controls, FM oscillation | Engineers and technicians who need Precision-critical cleaning | Achieve uniform cleaning with digital precision and easy custom settings. |
| MWL Series | Fully automated systems, basket oscillation | Engineers and technicians who need Heavy-duty automated industrial cleaning | Automate cleaning for large components and reduce labor with advanced features. |
Contact Us to Discuss the Right System for Your Needs

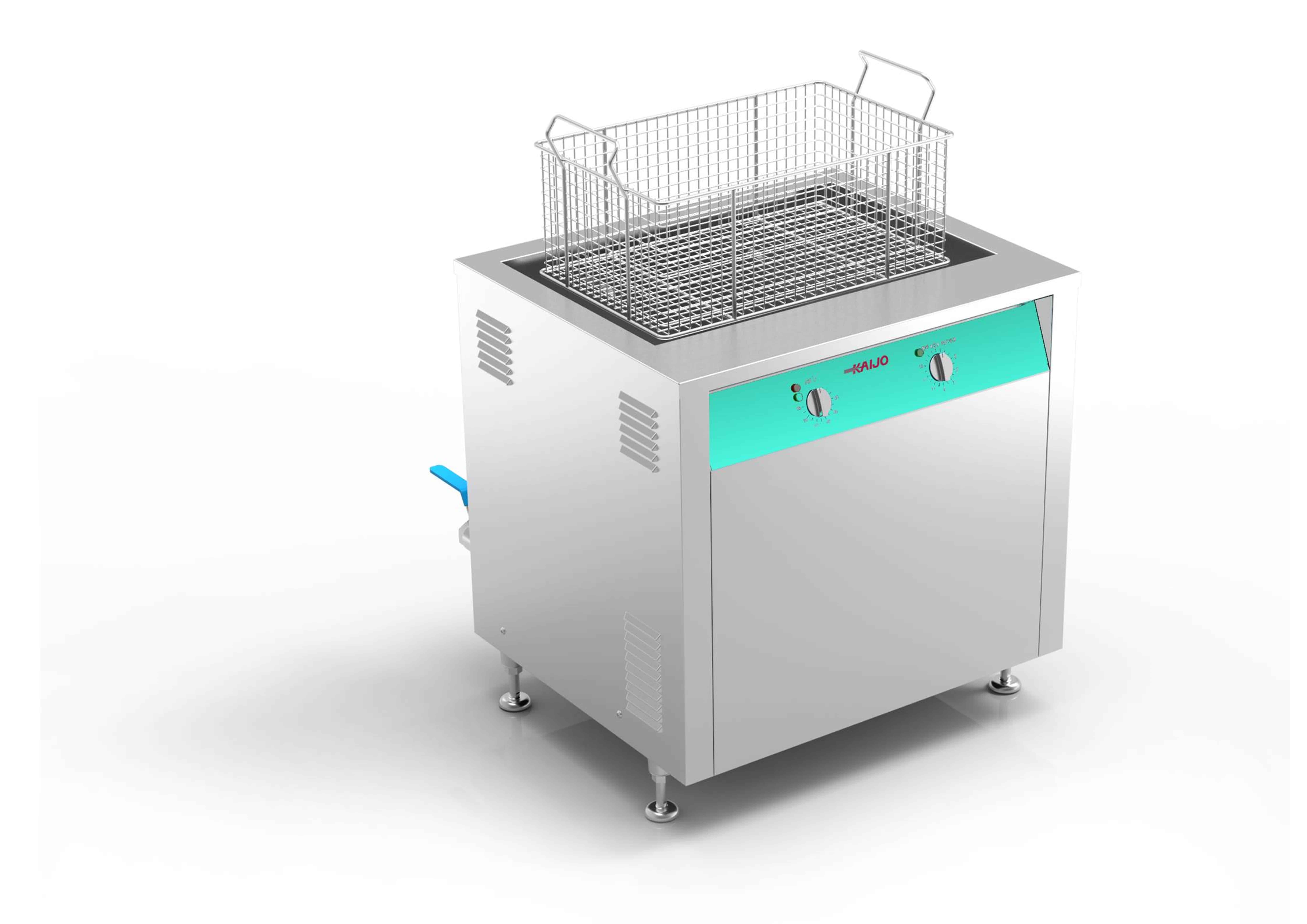

Effective Industrial Cleaning with Powerful Mechanical Controls (MW Series)
The MW series are large ultrasonic cleaners designed for straightforward cleaning of industrial parts, offering reliable performance for heavy-duty and routine applications. Ideal for manufacturing engineers and technicians, this series features mechanical controls for easy operation and minimal setup, making it a practical choice for routine industrial cleaning needs. The MW Series combines robust stainless steel construction with safety features like dry-run protection and temperature-controlled heaters to ensure consistent and long-lasting performance. With multiple tank sizes and a plug-and-play design, it delivers cost-effective cleaning solutions for diverse applications.
Top Benefits:
- ✓ Quick Setup: Start cleaning immediately with plug-and-play functionality.
- ✓ Built to Last: Stainless steel construction ensures long-term reliability.
- ✓ Reduce Downtime: Dry-run protection minimizes maintenance costs and ensures safety.
- ✓ Ease of Use: Simple, reliable operation aligns with lean manufacturing principles to improve efficiency and quality.
Key Features:
- ✓Wide range of large ultrasonic cleaning tank sizes: 102L (27 gallons) to 174L (46 gallons).
- ✓Adjustable frequencies for heavy-duty or delicate cleaning (28 kHz and 40 kHz).
- ✓ Simple mechanical dials for easy operation; no technical training needed.
Contact Us for a Free Consultation
Specifications:
| Model MW-Series |
Ultrasonic Frequency |
Ultrasonic Power |
Tank Volume |
Watt Density |
Input Power |
FLA | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Temp | Weight Capacity | Footprint | Tank Dimensions | Basket Dimensions | |||||||
| MW-1315 | 28kHz | 1500W | 102L (27G) |
15W/L (56W/G) |
AC208V, 1ph | 36A | 60°C 140°F | 20Kg 45lbs | 700 x 590 x 750 mm (27 x 23 x 29 in) |
600 x 400 x 455 mm (23 x 15 x 18 in) |
495 x 315 x 175mm (19 x 12 x 6 in) |
| MW-1415 | 40kHz | ||||||||||
| MW-1318 | 28kHz | 1800W | 140L (37G) |
13W/L (50W/G) |
43A | 750 x 640 x 750 mm (29 x 25 x 29 in) |
650 x 450 x 505 mm (25 x 17 x 20 in) |
520 x 355 x 225 mm (20 x 14 x 8 in) |
|||
| MW-1418 | 40kHz | ||||||||||
| MW-1324 | 28kHz | 2400W | 174L (46G) |
14W/L (52W/G) |
AC208V, 3ph | 41A | 910 x 690 x 850 mm (35 x 27 x 33 in) |
700 x 500 x 540 mm (27 x 19 x 21 in) |
580 x 405 x 265 mm (22 x 15 x 10 in) |
||
| MW-1424 | 40kHz |

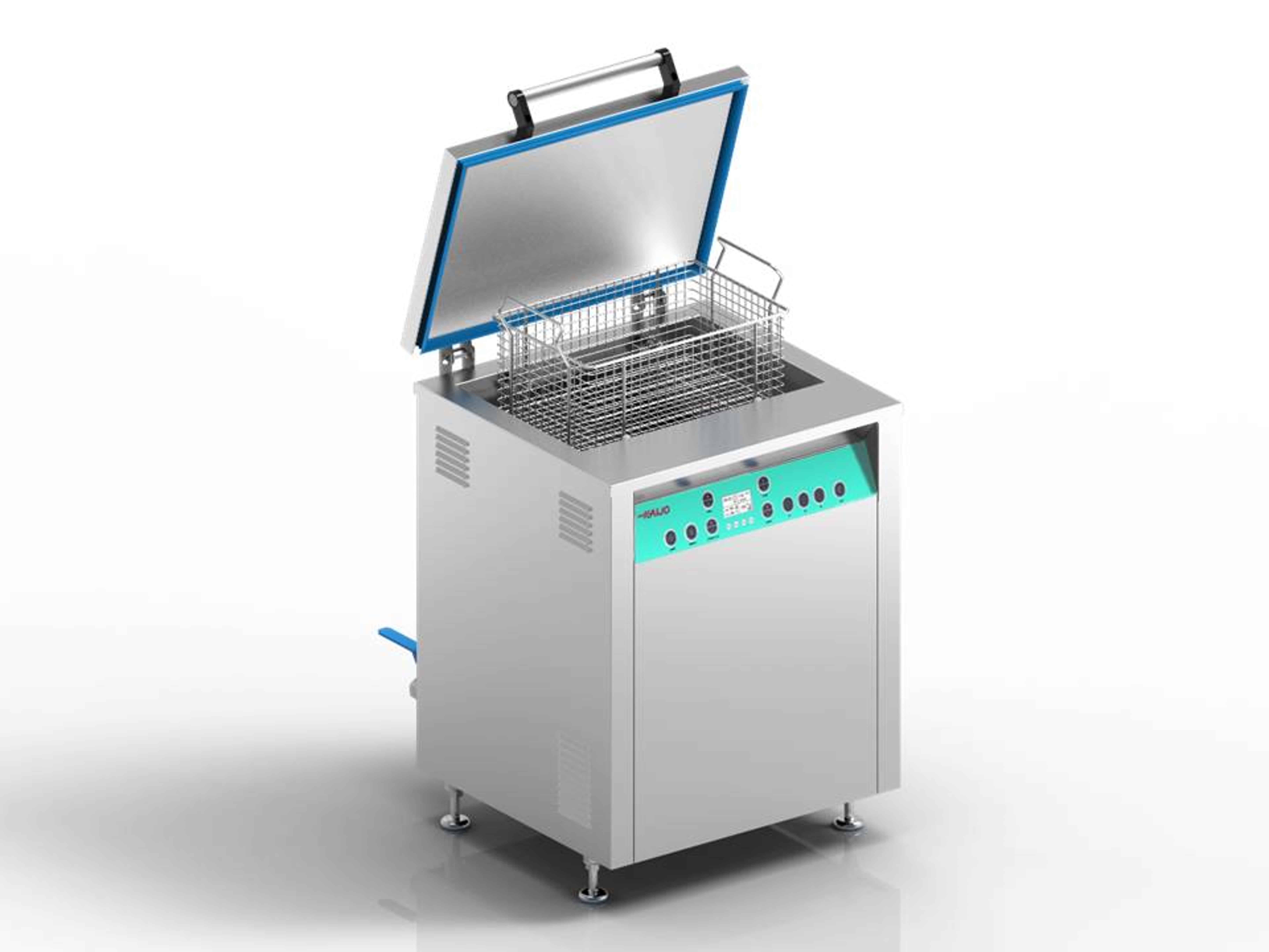

Precision-Controlled Ultrasonic Cleaners for Enhanced Process Efficiency (MWM Series)
The MWM series are large-capacity ultrasonic cleaners designed for tasks requiring precise and consistent cleaning of intricate and delicate components. It is ideal for process and manufacturing engineers who need advanced digital controls to fine-tune ultrasonic power, temperature, and cleaning time for optimal results. The system features FM oscillation technology for uniform cleaning and offers optional modular accessories, such as filtration units and oil-water separators, to enhance performance and reduce contamination. With its reliable and energy-efficient design, the MWM Series streamlines workflows and ensures high-quality cleaning results for a wide range of applications.
Top Benefits:
- ✓Easy Adjustments: The digital interface allows precise ultrasonic power and temperature control.
- ✓Consistent Results: FM oscillation technology ensures uniform cleaning across all part surfaces.
- ✓Eco-Friendly Efficiency: Minimize costs and waste with advanced energy-saving features.
- ✓Improves Production Efficiency: Ideal for troubleshooting process challenges and maintaining high-quality cleaning performance.
- ✓Easy Integration: Intuitive user interface design minimizes training requirements and integrates easily into workflows.
Key Features:
- ✓ Wide range of large ultrasonic cleaning tank sizes: 102L/27g to 174L/46g.
- ✓ Advanced digital interface for controlling ultrasonic power, temperature, and timer.
- ✓ Compatible with modular add-ons like oil-water separators and filtration units.
- ✓ Overflow Tank.
Specifications:
| Model MWM-Series |
Ultrasonic Frequency |
Ultrasonic Power |
Tank Volume |
Watt Density |
Input Power |
FLA | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Temp | Weight Capacity | Footprint | Tank Dimensions | Basket Dimensions | |||||||
| MWM-1315 | 28kHz | 1500W | 102L (27G) |
15W/L (56W/G) |
AC208V, 1ph | 36A | 60°C 140°F | 20Kg 45lbs | 700 x 600 x 800 mm (27 x 23 x 31 in) |
600 x 400 x 455 mm (23 x 15 x 18 in) |
495 x 315 x 175mm (19 x 12 x 6 in) |
| MWM-1415 | 40kHz | ||||||||||
| MWM-1318 | 28kHz | 1800W | 140L (37G) |
13W/L (50W/G) |
43A | 750 x 650 x 800 mm (29 x 25 x 31 in) |
650 x 450 x 505 mm (25 x 17 x 20 in) |
520 x 355 x 225 mm (20 x 14 x 8 in) |
|||
| MWM-1418 | 40kHz | ||||||||||
| MWM-1324 | 28kHz | 2400W | 174L (46G) |
14W/L (52W/G) |
AC208V, 3ph | 41A | 910 x 700 x 850 mm (35 x 27 x 33 in) |
700 x 500 x 540 mm (27 x 19 x 21 in) |
580 x 405 x 265 mm (22 x 15 x 10 in) |
||
| MWM-1424 | 40kHz |

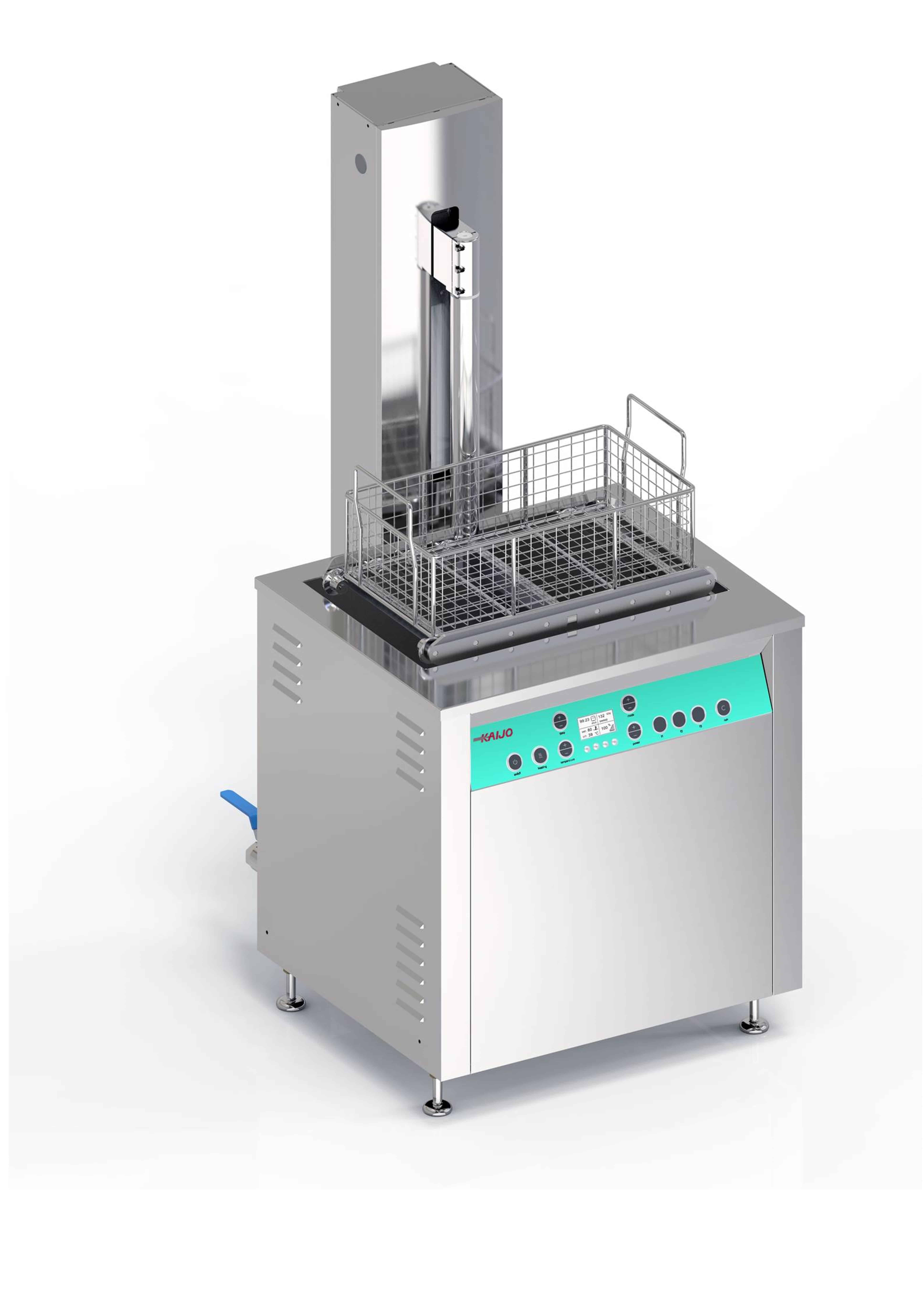

Automated Precision Cleaning for Heavy-Duty Applications (MWL Series)
The MWL series of large ultrasonic cleaners are designed for heavy-duty cleaning tasks and applications requiring advanced automation. Professionals such as process engineers and mechanical engineers benefit from features that include automatic basket lifting and oscillation, which enhance cleaning efficiency and safety. With high ultrasonic power, digital precision controls, and energy-saving components like overflow tanks, the MWL Series ensures consistent and effective cleaning of large or complex parts. This series optimizes workflows, reduces manual handling, and supports sustainable operations, making it an excellent choice for demanding cleaning requirements.
Top Benefits:
- ✓ Automatic Basket Control: Load and unload parts effortlessly with the platform lifting mechanism.
- ✓ Basket Oscillation: Ensures even and thorough cleaning, especially for intricate or complex parts.
- ✓ High Ultrasonic Power: Ultrasonic capabilities of up to 2400W tackle the most challenging cleaning tasks.
- ✓ Sustainability Built-In: Overflow tanks and energy-efficient systems minimize power consumption and reduce environmental impact.
- ✓ Advanced Safety Features: Prevents equipment damage and reduces risks with features like overflow tanks and precise digital controls.
Key Features: :
- ✓Wide range of large ultrasonic cleaning tank sizes: from 105L/28g to 193L/51g.
- ✓ Advanced digital interface for controlling ultrasonic power, temperature, and timer.
- ✓ Basket oscillation for enhanced cleaning coverage.
- ✓ Fully automated system with advanced safety features.
- ✓ Overflow Tank.
Contact Us to Find Your Perfect Solution
Specifications:
| Model MWL-Series |
Ultrasonic Frequency |
Ultrasonic Power |
Tank Volume |
Watt Density |
Input Power |
FLA | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Temp | Weight Capacity | Footprint | Tank Dimensions | Basket Dimensions | |||||||
| MWL-1315 | 28kHz | 1500W | 102L (27G) |
15W/L (56W/G) |
AC208V, 1ph | 36A | 60°C 140°F | 20Kg 45lbs | 760 x 780 x 1555 mm (30 x 31 x 62 in) |
600 x 400 x 480 mm (23 x 15 x 19 in) |
485 x 275 x 110mm (19 x 10 x 4 in) |
| MWL-1415 | 40kHz | ||||||||||
| MWL-1318 | 28kHz | 1800W | 140L (37G) |
13W/L (50W/G) |
43A | 810 x 830 x 1675 mm (31 x 32 x 66 in) |
650 x 450 x 550 mm (25 x 17 x 21 in) |
535 x 325 x 185 mm (21 x 12 x 7 in) |
|||
| MWL-1418 | 40kHz | ||||||||||
| MWL-1324 | 28kHz | 2400W | 174L (46G) |
14W/L (52W/G) |
AC208V, 3ph | 41A | 910 x 880 x 1800 mm (35 x 34 x 71 in) |
700 x 500 x 600 mm (27 x 19 x 23 in) |
575 x 365 x 235 mm (22 x 14 x 9 in) |
||
| MWL-1424 | 40kHz |
Articles & Resources:
The Ultimate Guide to Ultrasonic Cleaning
Ultrasonics for Automotive Manufacturing
Ultrasonics for Aerospace Manufacturing
FAQs About Large Ultrasonic Cleaners:
Large capacity ultrasonic cleaners efficiently clean bulky or high-volume components in a single cycle. They provide consistent cleaning performance, reduce manual labor, and ensure even distribution of cleaning action across large or intricate surfaces.
Kaijo’s large ultrasonic cleaners have safety features such as dry-run protection, temperature-controlled heaters, and automatic shutoff mechanisms. These features prevent equipment damage and enhance user safety.
Yes, Kaijo’s large ultrasonic cleaners are designed to optimize energy use with features like digital power controls, efficient heating systems, and optional accessories like filtration units to reduce waste.
Industries like automotive, aerospace, and electronics manufacturing rely on large ultrasonic tanks for cleaning engine components, sensitive electronic parts, and large aerospace structures, ensuring precision and reliability.
Choosing the right ultrasonic cleaner depends on factors like tank size, frequency, power output, and additional features (e.g., filtration units and oil separators). Consulting with Kaijo's experts ensures a tailored solution for your specific needs.
Yes, Kaijo offers modular accessories like filtration systems, oil-water separators, and customizable tank sizes to meet the unique requirements of various industrial applications.
They combine high ultrasonic power, customizable options, and robust construction to deliver efficient and precise cleaning.
Ready to Transform Your Cleaning Process?
Kaijo’s large ultrasonic cleaners redefine industrial cleaning with precision, reliability, and customization options that deliver long-term results. Whether you’re optimizing efficiency, ensuring part cleanliness, or reducing costs, our industry-leading designs will meet your specific requirements. Take the Next Step Today!
